1:8th Scale Products



1:8th Scale Electronic Speed Controllers

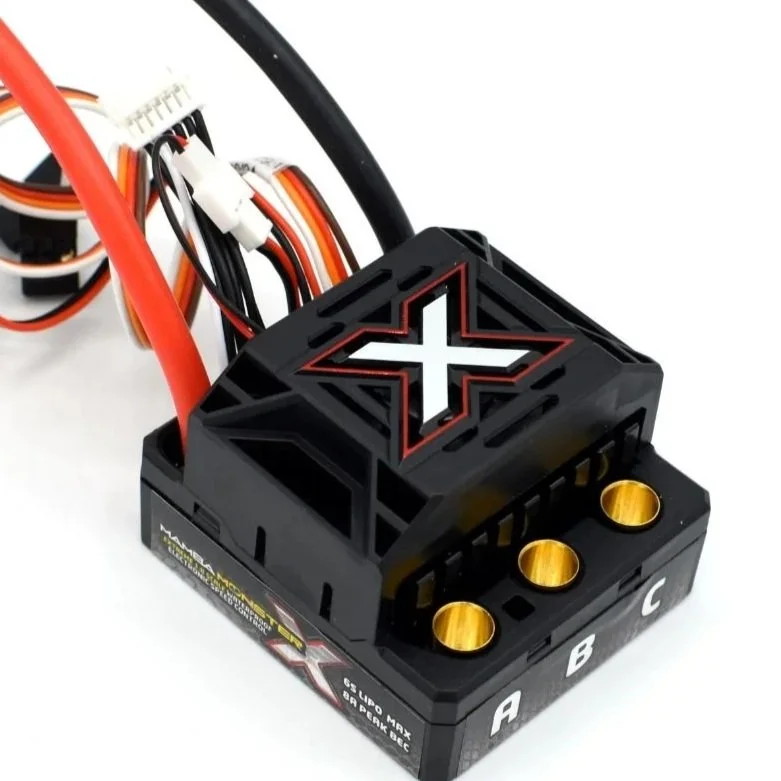

Mamba Monster X - sensored

Mamba Monster X is our latest 1:8 scale and Monster truck controller capable of 2S - 6S LiPo, with an 8 amp peak BEC - and, it’s waterproof*, so you can run your vehicle through morning dew, across soggy snow, or a muddy trail. This is the perfect upgrade for 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 15 lbs with our Neu-Castle 1515 2200kv motor. It also comes standard with a highly efficient, 30mm ESC cooling fan. Mamba Monster X also features updated Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field.

Mamba X 10th Scale-18.jpg

Mamba X - sensored

The Mamba X is made for 1:10th scale applications 3S-6S. It can also be used in lightweight 1:8th scale racing buggies up to 4S. However, this is pushing the limits of its capabilities and should only be done by experienced racers.

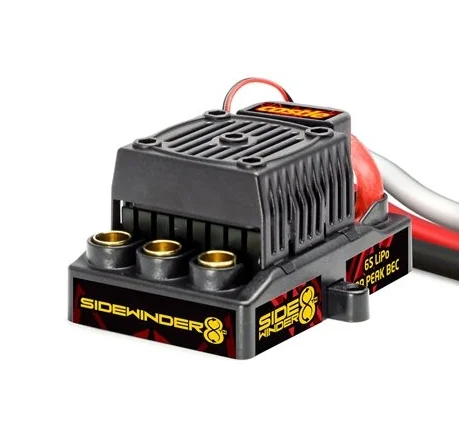

Sidewinder 8th - sensorless

Sidewinder 8th is our sport 1:8 scale waterproof* combo capable of 2-6S LiPo, with an 8 amp peak BEC. This is the perfect upgrade for 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 11 lbs. It can also work as a great upgrade for some 4WD short course trucks for 3s or 4s operation. It also comes standard with a highly efficient ESC cooling fan.

This combo includes the Sidewinder 8th ESC and our 1515B-2200Kv motor featuring the same internal design as the award-winning Neu-Castle 1515-2200Kv motor.

Mamba Monster 2 ESC.jpg

Mamba Monster 2 - sensorless

Mamba Monster 2 is capable of 2S LiPo to a maximum of 6S LiPo. It's also waterproof*, so you can run your vehicle across the morning dew, through soggy snow, or just about anywhere else you’d be interested in running a 1:8 scale RC buggy or truck. It features an easy-access case allowing you to replace fans quickly, if necessary. Additionally, Mamba Monster 2 features solder posts, so changing battery wire length and direction is simple for an even more custom install.






1:8th Scale Brushless Motors

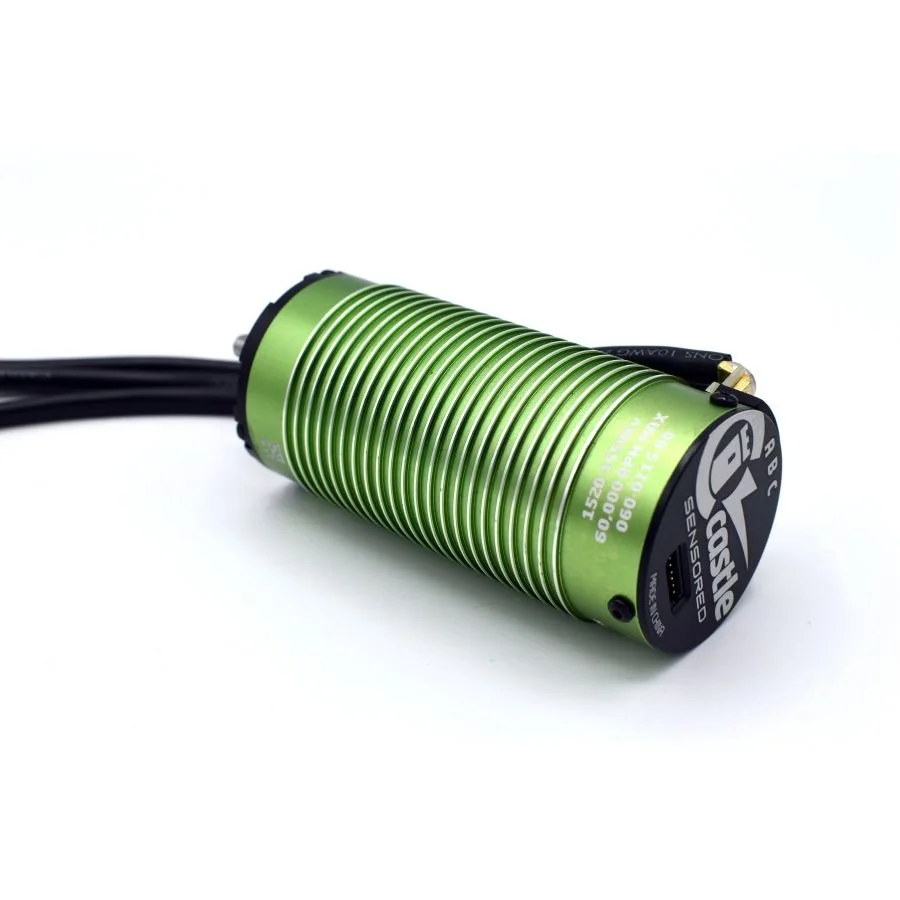

1512 Brushless Sensored

Input Voltage Range:2-4S LiPo

Kv:2650

Max. RPM:60,000

Size:Length: 67.7mm
Diameter: 40mm (41.4mm with fins)

Weight (w/wires):383g / 13.6oz

Shaft Size:Length: 20mm
Diameter: 5mm

Mounting Hole Specifications:M3 and M4 @ 25mm

Cooling Fan:Optional, coming soon!

Connectors:6.5mm male Castle Bullet Connectors, includes 210mm length sensor wire.

Items Needed for Operation:Compatible Electronic Speed Control (ESC)

Application Guidelines:Ideal for 1:8 scale off-road and on-road vehicles as well as 1:10 scale 4WD SCT up to 9lbs. (ROAR 1/8 MOD APPROVED)

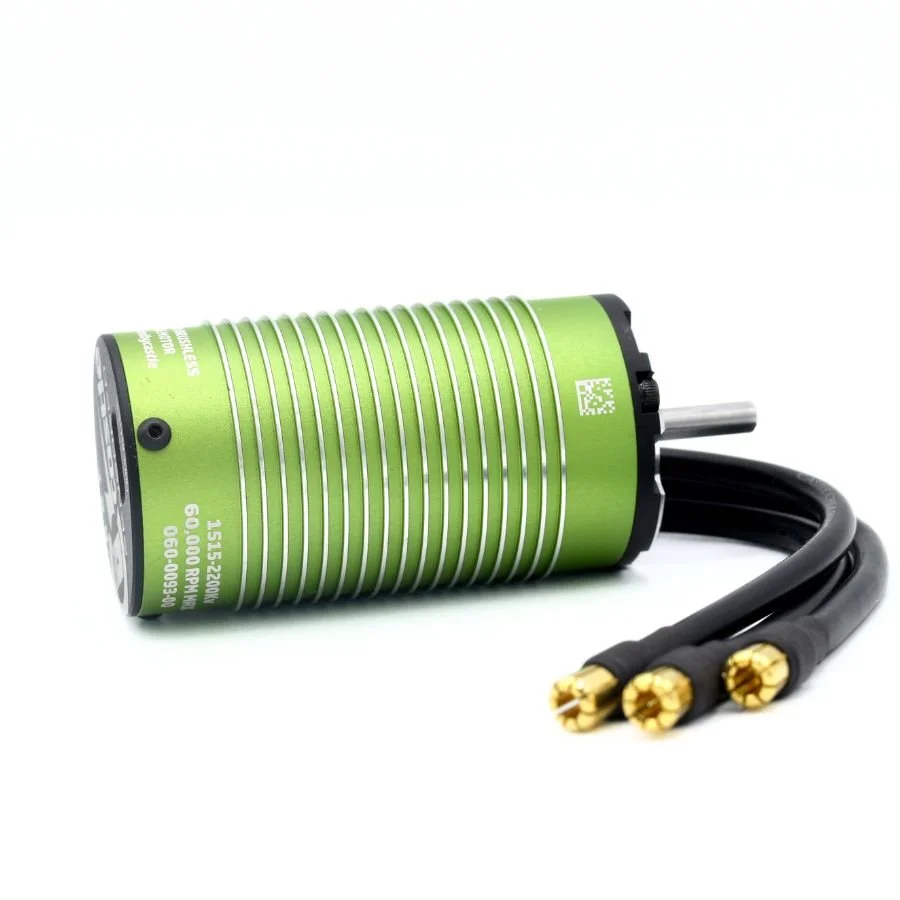

1515 Brushless Sensored

Input Voltage Range:2-6S LiPo

Kv:2200

Max. RPM:60,000

Size:Length: 75.4mm
Diameter: 40mm (41.4mm with fins)

Weight (w/wires):429g / 15.1oz

Shaft Size:Length: 20mm
Diameter: 5mm

Mounting Hole Specifications:M3 and M4 @ 25mm

Cooling Fan:Optional, coming soon!

Connectors:6.5mm male Castle Bullet Connectors, includes 210mm length sensor wire.

Items Needed for Operation:Compatible Electronic Speed Control (ESC)

Application Guidelines:Ideal for 1:8 scale buggies, truggies, on-road vehicles and 1:10 scale monster trucks up to 15lbs.
