Air Speed Controls

Yellow Airplane.jpg





Talon 15

Miniature Muscle

Talon 15 is a 15 amp controller with an outlandish 8 amp BEC. Applications range from foamies to micro, and sub-micro helis running up to 4S and pulling 15 amps. As with any Castle ESC, the Talon 15 offers Castle's industry-leading functions, and easy programming using the Castle Link USB adapter (coupon for free Castle Link included), or the Castle Field Link Portable Programmer (sold separately).


Talon 25

Compact and Cool

Talon 25 is intended for use in most 400-size helicopter setups running up to 6S LiPo or your favorite 3D foamie that pulls up to 25 amps. Despite it's size, it boasts an impressive 8 amp peak/3 amp continuous BEC, keeping even the most draining servos at ease. Talon 25 also offers Castle's industry-leading helicopter functions, not to mention easy programming using the Castle Link USB adapter(coupon for free Castle Link included).

Talon 35

Little Package, Big BEC.

Talon 35 can take on the most extreme maneuvers while keeping it's cool, and is intended for use in 450 Heli setups running up to 6S, or .10 to .20 fixed wing applications pulling up to 35 amps. It boasts a 7 amp peak/5 amp continuous BEC, keeping even the most draining servos at ease. Talon 35 also offers Castle's industry-leading helicopter functions, not to mention easy programming using the Castle Link USB adapter (coupon included). The compact layout and thin profile make mounting Talon 35 simple and stress-free in any setup.

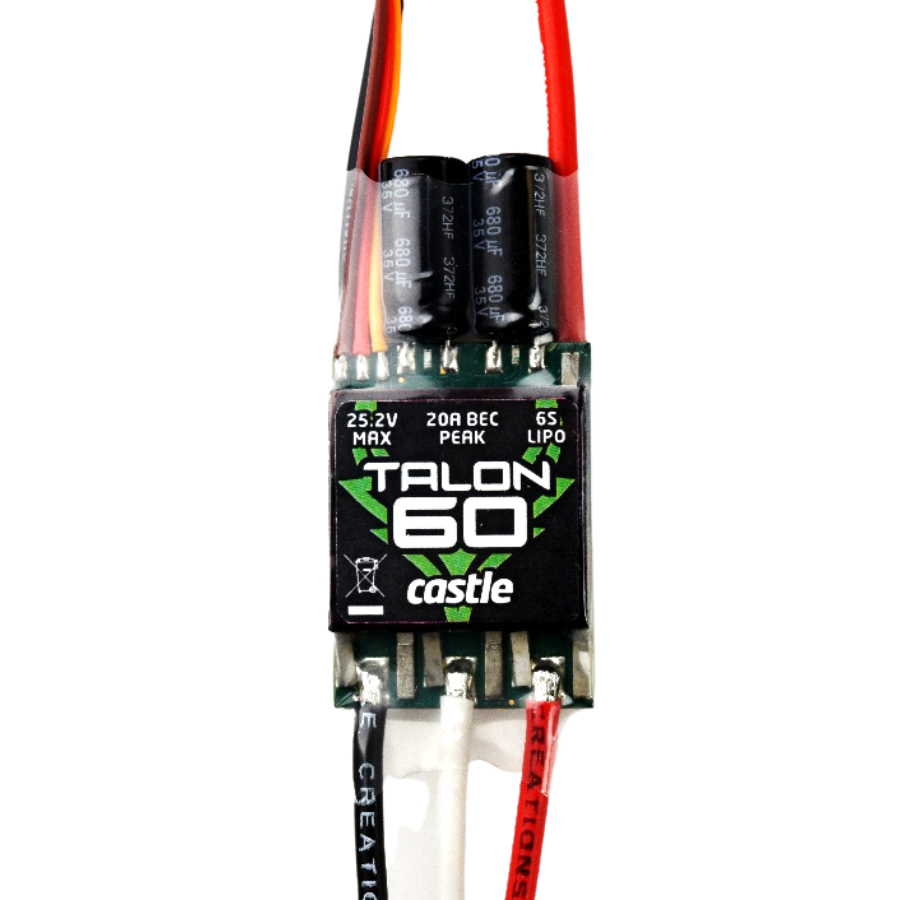

Talon 60

The Talon 60 is well suited for SMALL SCALE OR AEROBATIC HELIS ranging from 360-450 size requiring up to 1400 watts on 6S This ESC offers Castle’s industry-leading helicopter functions, such as the remarkable direct entry governor mode. Simply type in the desired RPM using a Castle Link USB adapter (redeemable coupon enclosed with purchase) and the free Castle Link Programming Suite running on a Windows ™ PC.

The compact layout and slim profile of the Talon 60 is also perfect for SCALE, SPORT and AEROBATIC PLANES in the .32 - .60 range requiring up to 1400 watts on 6S.  Mounting  the Talon 60 is simple and stress-free in any setup.  With its 20 AMP PEAK POWER and 8 AMPS OF CONTINUOUS POWER, it will keep even the most draining servos at ease.

Talon 90

Talon 90 - Simply BEC-tacular!
Talon 90 sports a BEC designed for today's servos, pumping out up to 20 amps peak power and 9 amps of continuous power to keep even the hungriest servos happy.

Designed for Helis
Talon 90 is ideal for helicopters drawing 2,000 watts on 6S. It's a great fit for extreme 500 and 550 class helis and sport (6S) 600 setups, and offers Castle's industry-leading helicopter functions, such as the unbelievable direct entry governor mode. Simply type in the desired RPM using a Castle Link USB adapter (coupon for free Castle Link adapter included in package) and the free Castle Link GUI on a Windows PC.

Great for Fixed Wing
Talon 90 is perfect for aerobats up to 10 pounds and scale ships up to 20 pounds. The innovative case ensures cooling in even the toughest mounting locations.

Talon 90 delivers premium performance and features at an amazing price!


Talon HV 120

The Biggest BEC on the Block!

Talon HV 120 is the first high voltage controller to come out of the Castle factory with a built-in BEC. This powerhouse features a 20A peak BEC with selectable 6v or 8v output voltage. With a voltage input range from 3S to 12S LiPo, and a 120A continuous amperage capability, it’s capable of up to 6000W of continuous power for a wide variety of heli and fixed wing applications. The sleek aluminum case keeps the ESC cool during high power demand situations. For set-ups with limited airflow, such as under canopies or in a fuselage, there is an optional 40mm fan (sold separately; operates at 4.8 - 7.4 volts). Talon HV 120 has access to Castle’s industry leading software functions, and USB programming capability via Castle Link USB adapter (coupon included)*.





Get the Edge Over the Competition!

Phoenix Edge Series ESCs are the next evolution in speed controller technology. The white user-programmable auxiliary wire can be used for features such as helicopter governor gain input adjustments mid-flight, serving as an audible beacon after an “unexpected landing”, acting as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Keyincluded), or as a receiver arming lock. Combined with data logging, access to Castle’s industry leading software functions, and USB programming capability via Castle Link USB adapter (coupon included), Phoenix Edge offers unparalleled versatility.


Phoenix Edge 50

Telemetry Capable : Yes
ESC Current Rating : 50
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : Yes
Minimum Input Voltage : 2S
Maximum Input Voltage : 8S


Phoenix Edge 75

Telemetry Capable : Yes
ESC Current Rating : 75
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : Yes
Minimum Input Voltage : 2S
Maximum Input Voltage : 8S


Phoenix Edge 100

Telemetry Capable : Yes
ESC Current Rating : 100
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : Yes
Minimum Input Voltage : 2S
Maximum Input Voltage : 8S


Phoenix Edge 130

Telemetry Capable : Yes
ESC Current Rating : 130
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : Yes
Minimum Input Voltage : 2S
Maximum Input Voltage : 8S


Phoenix Edge 200

Telemetry Capable : Yes
ESC Current Rating : 200
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : Yes
Minimum Input Voltage : 2S
Maximum Input Voltage : 8S





Lose the Weight, Gain the Edge!

Phoenix Edge Series ESCs are the next evolution in speed controller technology. The white user-programmable auxiliary wire can be used for features such as helicopter governor gain input adjustments mid-flight, serving as an audible beacon after an “unexpected landing”, acting as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included), or as a receiver arming lock. Combined with data logging, access to Castle’s industry leading software functions, and USB programming capability via Castle Link USB adapter (coupon included), Phoenix Edge offers unparalleled versatility.

Phoenix Edge Lite controllers offer all the amazing features and functionality as the regular Edge series with a reduced size and weight.


Phoenix Edge Lite 50

Telemetry Capable : Yes
ESC Current Rating : 50
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : Yes
Minimum Input Voltage : 2S
Maximum Input Voltage : 8S


Phoenix Edge Lite 75

Telemetry Capable : Yes
ESC Current Rating : 75
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : Yes
Minimum Input Voltage : 2S
Maximum Input Voltage : 8S


Phoenix Edge Lite 100

Telemetry Capable : Yes
ESC Current Rating : 100
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : Yes
Minimum Input Voltage : 2S
Maximum Input Voltage : 8S


Phoenix Edge Lite 130

Telemetry Capable : Yes
ESC Current Rating : 130
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : Yes
Minimum Input Voltage : 2S
Maximum Input Voltage : 8S


Phoenix Edge Lite 200

Telemetry Capable : Yes
ESC Current Rating : 200
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : Yes
Minimum Input Voltage : 2S
Maximum Input Voltage : 8S





GET THE EDGE OVER THE COMPETITION!

Phoenix Edge Series ESCs are the next evolution in speed controller technology. The white user-programmable auxiliary wire can be used for features such as helicopter governor gain input adjustments mid-flight, serving as an audible beacon after an “unexpected landing”, acting as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included), or as a receiver arming lock. Combined with data logging, access to Castle’s industry leading software functions, and USB programming capability via Castle Link USB adapter (coupon included), Phoenix Edge offers unparalleled versatility.


Phoenix Edge HV 40

Telemetry Capable : Yes
ESC Current Rating : 40
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : No
Minimum Input Voltage : 3S
Maximum Input Voltage : 12S

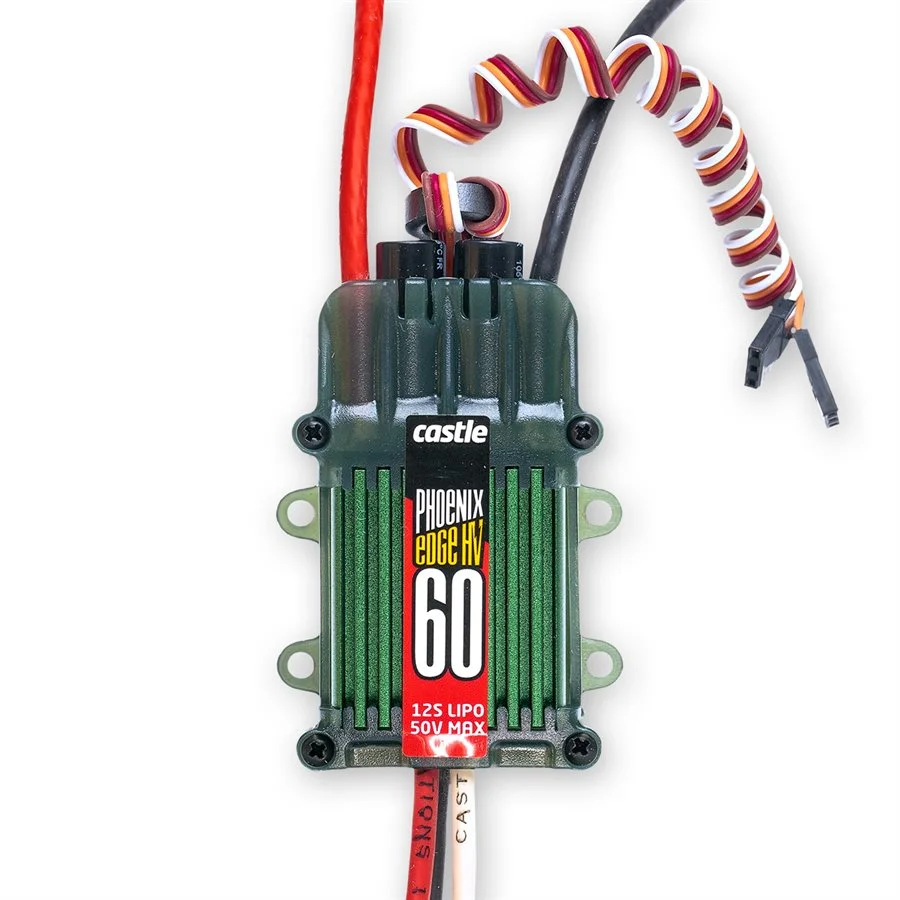

Phoenix Edge HV 60

Telemetry Capable : Yes
ESC Current Rating : 40
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : No
Minimum Input Voltage : 3S
Maximum Input Voltage : 12S


Phoenix Edge HV 80

Telemetry Capable : Yes
ESC Current Rating : 40
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : No
Minimum Input Voltage : 3S
Maximum Input Voltage : 12S


Phoenix Edge HV 120

Telemetry Capable : Yes
ESC Current Rating : 120
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : No
Minimum Input Voltage : 3S
Maximum Input Voltage : 12S


Phoenix Edge HV 160

Telemetry Capable : Yes
ESC Current Rating : 160
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : No
Minimum Input Voltage : 3S
Maximum Input Voltage : 12S


Phoenix Edge HVF 160

Cooling Fan: Yes
Telemetry Capable : Yes
ESC Current Rating : 160
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : No
Minimum Input Voltage : 3S
Maximum Input Voltage : 12S





Lose the Weight, Gain the Edge!

Phoenix Edge Series ESCs are the next evolution in speed controller technology. The white user-programmable auxiliary wire can be used for features such as helicopter governor gain input adjustments mid-flight, serving as an audible beacon after an “unexpected landing”, acting as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included), or as a receiver arming lock. Combined with data logging, access to Castle’s industry leading software functions, and USB programming capability via Castle Link USB adapter (coupon included), Phoenix Edge offers unparalleled versatility.



Phoenix Edge Lite HV controllers offer all the amazing features and functionality as the regular HV series with a reduced size and weight.


Phoenix Edge Lite HV 40

Telemetry Capable : Yes
ESC Current Rating : 40
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : No
Minimum Input Voltage : 3S
Maximum Input Voltage : 12S


Phoenix Edge Lite HV 60

Telemetry Capable : Yes
ESC Current Rating : 40
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : No
Minimum Input Voltage : 3S
Maximum Input Voltage : 12S


Phoenix Edge Lite HV 80

Telemetry Capable : Yes
ESC Current Rating : 40
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : No
Minimum Input Voltage : 3S
Maximum Input Voltage : 12S


Phoenix Edge Lite HV 120

Telemetry Capable : Yes
ESC Current Rating : 120
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : No
Minimum Input Voltage : 3S
Maximum Input Voltage : 12S


Phoenix Edge Lite HV 160

Telemetry Capable : Yes
ESC Current Rating : 160
Data Logging : Yes
Auxiliary Wire : Yes
Internal BEC : No
Minimum Input Voltage : 3S
Maximum Input Voltage : 12S







DMR 30/40

MORE POWER. MORE EFFICIENCY.

The DMR 30/40 (Dedicated Multi-Rotor) Electronic Speed Control (ESC) will change the way you fly! Recommended for set-ups pulling up to 40 amps* and running up to 6S LiPo, your Quadcopter or Multi-Rotor platform will perform as never before.

* Power estimated at 25.2V, 40A, full throttle, and 40mph airflow.
