SURFACE PRODUCTS

CC 5be 2.jpg


Electronic Speed Controllers




The Sidewinder line of ESCs are our Sport-Class Surface Speed Controllers.  They're designed to withstand the most abusive environments while keeping your ride moving fast and cool.  They may not have sensors, but they have loads of Castle Power!

Don't know which speed control you need?  Check out our Getting Started page.


ALL NEW Sidewinder 4 - sensorless

SEND IT with Sidewinder!  Watch the launch video

The all new and improved Sidewinder 4 builds upon Castle’s most popular platform - the Sidewinder 3. The Sidewinder 4 is our first platform running Cryo-Drive technology which reduces operating temperatures in all applications. Cryo-Drive is a potent combination of software enhancements and precision fluid dynamics. The new case is designed specifically for maximum airflow from the huge 30mm fan included with the Sidewinder 4. These changes result in cooler ESC temperatures, increased runtime and power handling. All of these improvements mean you can gear more aggressively for more speed and harder/longer runs. And of course it is still waterproof** and compatible with the optional Castle Link USB programmer.

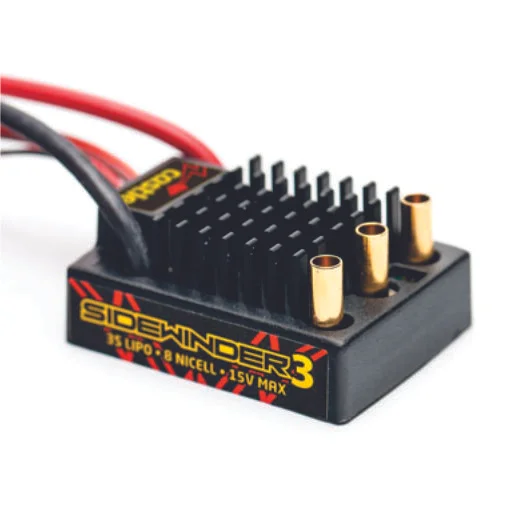

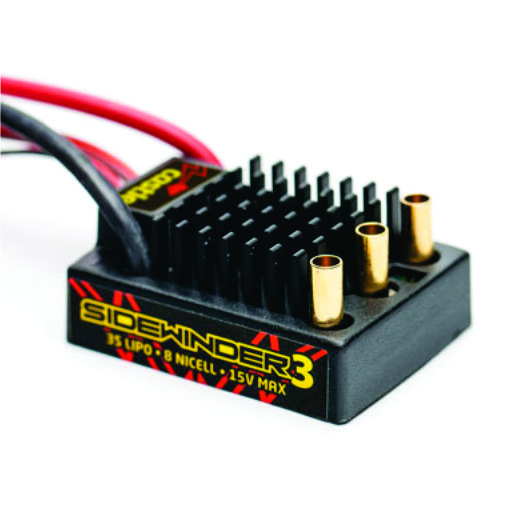

Sidewinder 3 - sensorless

Sidewinder 3 is the perfect waterproof* ESC for 1:10 scale off-road, on-road, and rock crawlers running up to 3S LiPo**. It sports updated circuitry for faster response time and improved reliability. The Sidewinder 3 can run 540 (36mm) sensorless brushless motors or brushed motors down to a 19 turn.

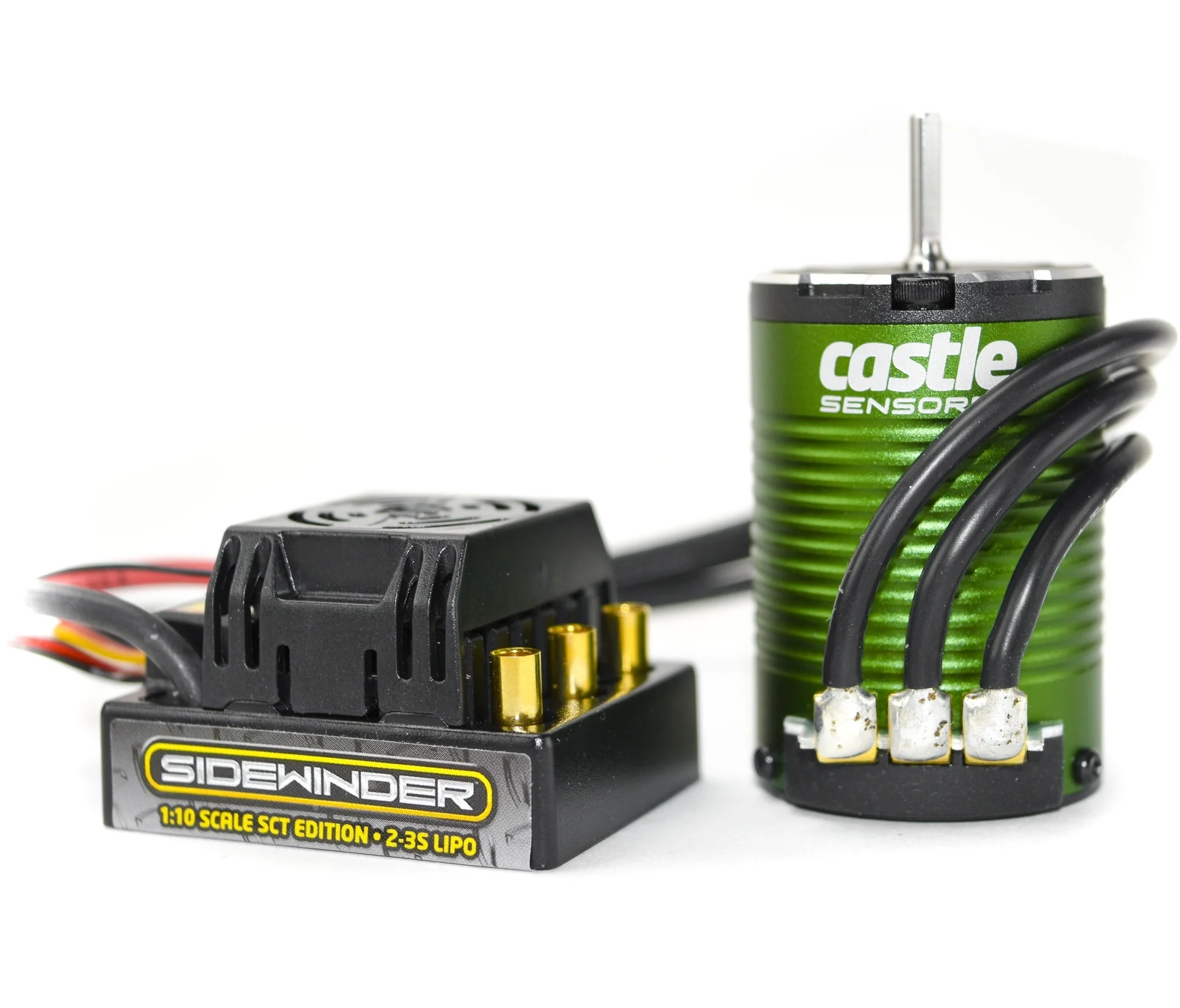

Sidewinder SCT Edition - sensorless combo

Sidewinder SCT is Castle’s solution for anyone who needs an unbeatable combination of power and affordability in a special edition controller and motor combo made for Short Course Truck racing. Intended for short course trucks running on 2s LiPo and weighing up to 6.5 lbs. It is also a great system and a torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 3s LiPo. The Sidewinder SCT Combo will give you exceptional response and performance right of the box!




Sidewinder 8th - sensorless combo

Sidewinder 8th is our sport 1:8 scale waterproof* combo capable of 2-6S LiPo, with an 8 amp peak BEC. This is the perfect upgrade for 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 11 lbs. It can also work as a great upgrade for some 4WD short course trucks for 3s or 4s operation. It also comes standard with a highly efficient ESC cooling fan.

This combo includes the Sidewinder 8th ESC and our 1515B-2200Kv motor featuring the same internal design as the award-winning Neu-Castle 1515-2200Kv motor.

Sidewinder Micro 2 - sensorless

Sidewinder Micro 2 is our entry level 1:18 scale controller capable of 2S - 3S LiPo, with a 2 amp peak BEC, and is perfect for 1:18 scale 2WD vehicles and smaller 4WD (up to 2 lbs.) such as the Team Associated RC18B2 or Dromida SC4 SCT. Whether you are converting to a brushless setup or simply want more power than your current brushless power system is putting out, Sidewinder Micro 2 is the perfect controller to fit your needs.
Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo)




The Mamba X line of ESCs represents our highest quality and performance Castle products.  They're designed to withstand the most abusive environments while keeping your ride moving.  Most of our sensored line of Mamba ESCs use "Quiet Sense" and "Smart Sense" to make them super smooth and accurate.

Don't know which speed control you need?  Check out our getting started page.

Mamba Micro X - sensored

Mamba Micro X is our latest 1:18 scale controller capable of 2S - 3S LiPo, with an 2 amp peak BEC - and, it’s waterproof*, so you can run your vehicle through morning dew, across soggy snow, or a muddy trail. This is the perfect upgrade for 2WD or 4WD vehicles over 1.5 lbs and up to 2.25 lbs. The Mamba Micro X also works well in some 1/10th scale crawlers. Recommended motors include Castle's "Slate" crawler motors (combos available) and Holmes Hobbies Puller Pro 540 "Stubby" (≤ 2700kv)

Mamba X - sensored

Castle Creations is proud to announce our new flagship surface product, the MAMBA X EXTREME 1:10 SCALE WATERPROOF ESC. Castle addressed three main concepts while designing a new ESC for the modern day RC enthusiast; VERSATILITYRELIABILITY, and PERFORMANCE. These  are the pillars of the Mamba X design and the driving forces behind the feature-packed controller.

The Mamba X is extremely versatile, capable of powering a wide variety of applications ranging from 2S to 6S and vehicles ranging from 1/10th scale to 1/8th scale*. Whether you are racing at the track with your 2wd buggy, bashing through mud puddles in your SCT or monster truck, or navigating a hardcore crawling excursion, this controller raises the bar to a whole new level.

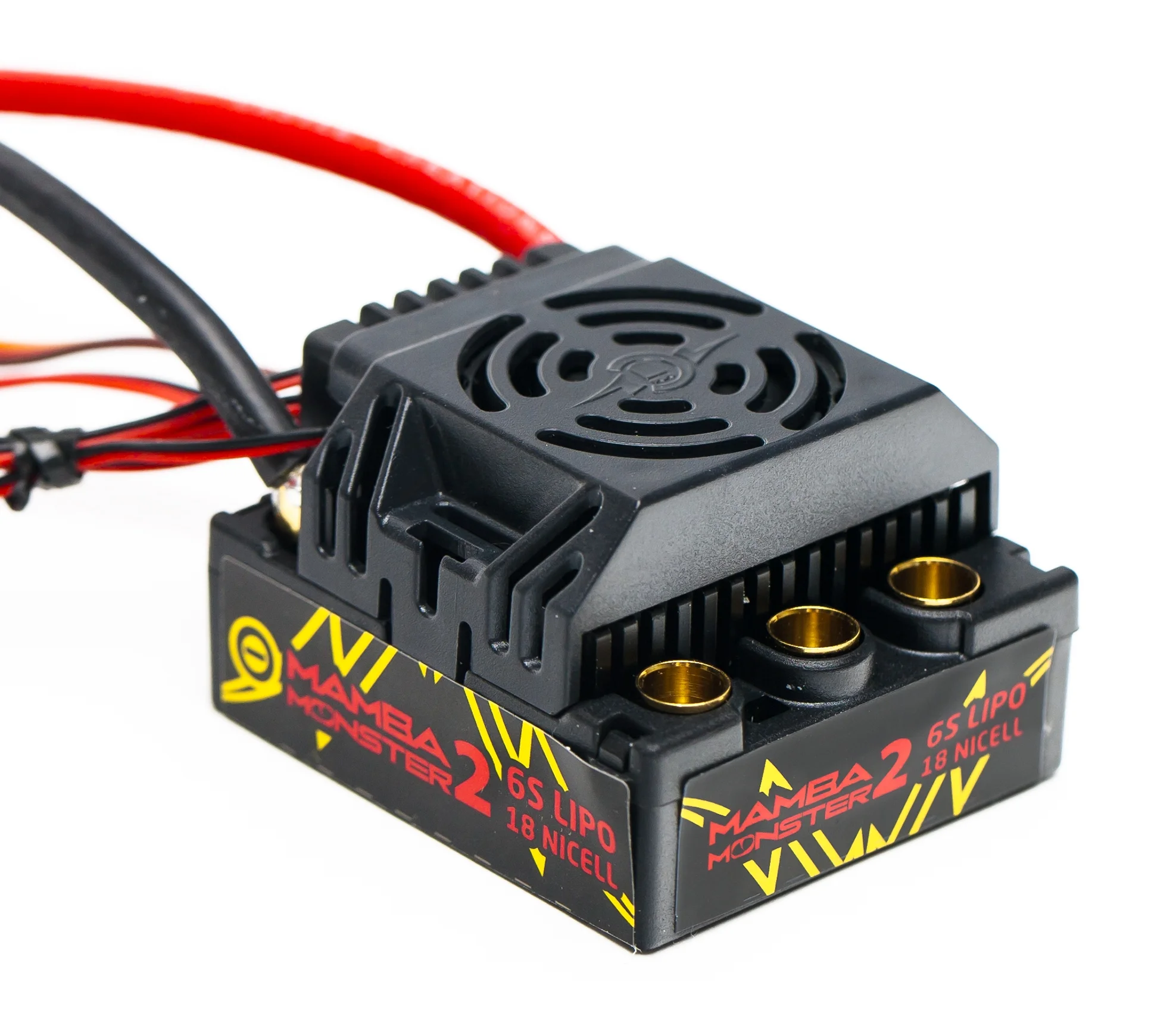

Mamba Monster 2 - sensorless

Mamba Monster 2 is capable of 2S LiPo to a maximum of 6S LiPo. It's also waterproof*, so you can run your vehicle across the morning dew, through soggy snow, or just about anywhere else you’d be interested in running a 1:8 scale RC buggy or truck. It features an easy-access case allowing you to replace fans quickly, if necessary. Additionally, Mamba Monster 2 features solder posts, so changing battery wire length and direction is simple for an even more custom install.

Mamba Monster X - sensored

Mamba Monster X is our latest 1:8 scale and Monster truck controller capable of 2S - 6S LiPo, with an 8 amp peak BEC - and, it’s waterproof*, so you can run your vehicle through morning dew, across soggy snow, or a muddy trail. This is the perfect upgrade for 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 15 lbs with our Neu-Castle 1515 2200kv motor. It also comes standard with a highly efficient, 30mm ESC cooling fan. Mamba Monster X also features updated Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field.

Mamba XLX - sensorless

Mamba XL X is our latest 1:5 scale controller capable of 3S - 8S LiPo, with a 20 amp peak BEC. This is the perfect upgrade for 1:5 scale RC hobby vehicles (including gas to electric conversions) weighing up to 30 lbs for 2WD and 25 lbs for 4WD. The XL X has an auxiliary wire, increased BEC amperage capability and more capacitors to protect against ripple current.






Brushless Motors




For more than a decade Castle has been providing award winning brushless sensorless motors to R/C enthusiasts worldwide. In response to overwhelming requests by our customers, we have brought technological advancements together that will deliver unprecedented performance in our new SENSORED motor Line.

  • Our IMPROVED 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT.

  • QUIETSENSE™ technology shields the sensors from magnetic field noise generated from the motor coils and keeps your motor and ESC in sync at all times. Use of a Flux Shield™ in conjunction with secondary Sense Magnets delivers even HIGHER PRECISION and MORE EFFICIENT startups.

  • Our OPTIMIZED design eliminates the need for mechanical timing adjustments. Our sensor alignment method delivers uniform timing and torque in both directions, automatically.

  • REBUILDABLE design allows users to replace front end bell/bearing assembly or rotor/shaft assembly.

  • ROAR standard sensor port and labeled connections.

  • Updated modern and sleek design; looks as cool as it performs.

  Need Help getting started or To learn all about our motor technology, click the links below.

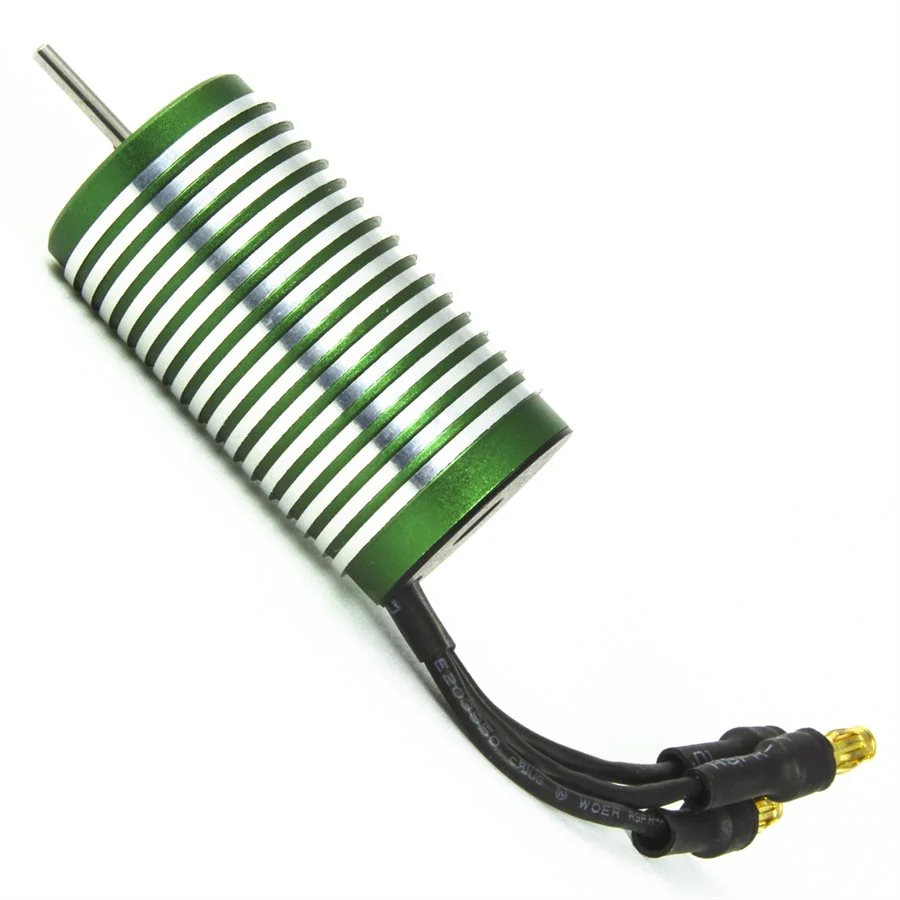

08 Series Brushless Sensorless Motors

Our 4 pole 0808 series motors are intended for on-road and off-road applications running up to 3S LiPo and weighing in at up to 2.5lbs. 0808 motors are available with in combos with both of our race-proven Micro ESCs. For 2WD and lighter 4WD vehicles (<1.5lbs) we recommend the Sidewinder Micro 2, and for heavier 4WD vehicles (>1.5lbs) the Mamba Micro X is recommended. The 0808 series motors deliver tremendous performance for an extremely affordable price.
Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo)

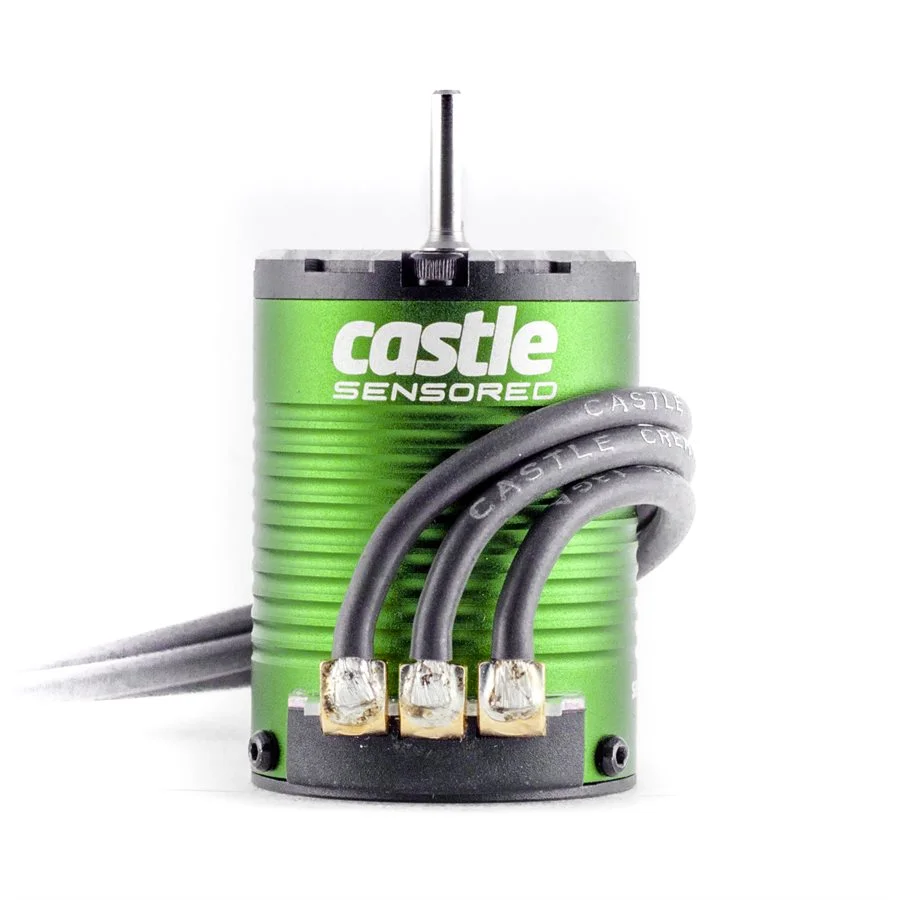

14 Series Brushless Sensored Motors

The 4 pole 1400 Series sensored motors are our most versatile motor design.  From the super low Kv needs of Crawlers to the super high Kv needs of Race Buggies, we have a 1400 motor for you.  1400 motors can handle 2-3S LiPo in 1:10th Scale 2WD SCT Trucks up to 5lbs, stadium trucks, buggies, and on-road vehicles up to 4lbs.


14 Series Crawler Edition Motors

Our latest additions are the 1406 series in a "SLATE" color, in 1900KV, 2280KV, 2850KV and 3800KV. These motors are ROCK READY and we have the startup on low RPMs under control. Castle now has you covered if you are looking for ultimate control out on the trails or on your Ultra 4 track days.

If you're looking for a higher torque motor for rock racing, hill climbing or hardcore trail running you will want to use the larger, higher torque and power rated 1410 - 3800kv motor

15 Series Brushless Sensored Motors

Input Voltage Range:2-4S LiPo

Size:Length: 67.7mm
Diameter: 40mm (41.4mm with fins)

Weight (w/wires):383g / 13.6oz

Shaft Size:Length: 20mm
Diameter: 5mm

Mounting Hole Specifications:M3 and M4 @ 25mm

Cooling Fan:Optional, coming soon!

Connectors:6.5mm male Castle Bullet Connectors, includes 210mm length sensor wire.

Items Needed for Operation:Compatible Electronic Speed Control (ESC)

Application Guidelines:Ideal for 1:8 scale off-road and on-road vehicles as well as 1:10 scale 4WD SCT up to 9lbs. (ROAR 1/8 MOD APPROVED)

20 Series Brushless Sensorless Motors

The Castle 2028 Extreme 800Kv motor is a robust, high-efficiency brushless motor that holds up to the heavy throttle and extended usage that 1/5th scale vehicles like the HPI Baja 5B and 5T encounter; the perfect upgrade for any 1:5 scale RC hobby vehicles (including gas to electric conversions) weighing up to 30 lbs for 2WD and 25 lbs for 4WD. High quality stator and magnet shapes provide lower cogging torque for improved starting performance. The 2028 Extreme can easily run in the 10 horsepower range*

*Burst power output for durations typical of vehicle acceleration




Surface Accessories



15XX Fan Shroud 2.jpg

Motor Cooling Fans



If you plan on pushing your ride to extreme limits, you may want to keep things cool with our specially designed motor cooling fans.


Bullet Connectors



Castle Creations offers connectors in a range of sizes; from 4.0mm for your 1/10th scale setups to the massive 8.0mm connectors for your 1/5th scale vehicles and large helicopters and planes.

Our new polarized connectors come in 4mm and 6.5mm sizes to handle the high current demands between your battery and ESC; we also offer them in a pre-made series harness using our high strand count, silicone insulated wire.

We also offer a series and parallel harness with Deans Ultra Plugs and our 10AWG wire.

CC BEC 2.0 WP-15.jpg

BEC Voltage Regulators

Power all of your on-board accessories with one of our tried and true BECs.  From digital servos to lighting kits, we have a BEC for you.
